CNC (2 Axis) Tube Bender: PLC Control
Features:
One axis numerical controlled of bending-axis by encoder / hydraulic valves
Bending angle controlled by micro encoder, provides ± 0.1 tolerance
Mitsubishi PLC ( Programmable Logic Control ) system
Provides 200 programs memory, each program with 20 angles (bends)
Provides anticipated two steps mandrel retraction
Provides pressure die booster
Provides pressure die micro adjustment of backward to protect the ball mandrel.
Provides pressure die repetition
Bending movement time can be programmable to meet different demands.
6” display touch screen to operate the machine easily
Emergency stop of two safety plates with bending arm for working safety
Bending tooling & Accessories:
Bending die
Clamping die
Pressure die / guide die
Mandrel (bullet shape)
6 pieces of stoppers for tube length control
A working table for tube rotation fixtures (standard size)
Wiper die rack
Ball mandrel / multiple-direction ball mandrel (optional)
Wiper die (optional)
Split bending die (optional)
Specification

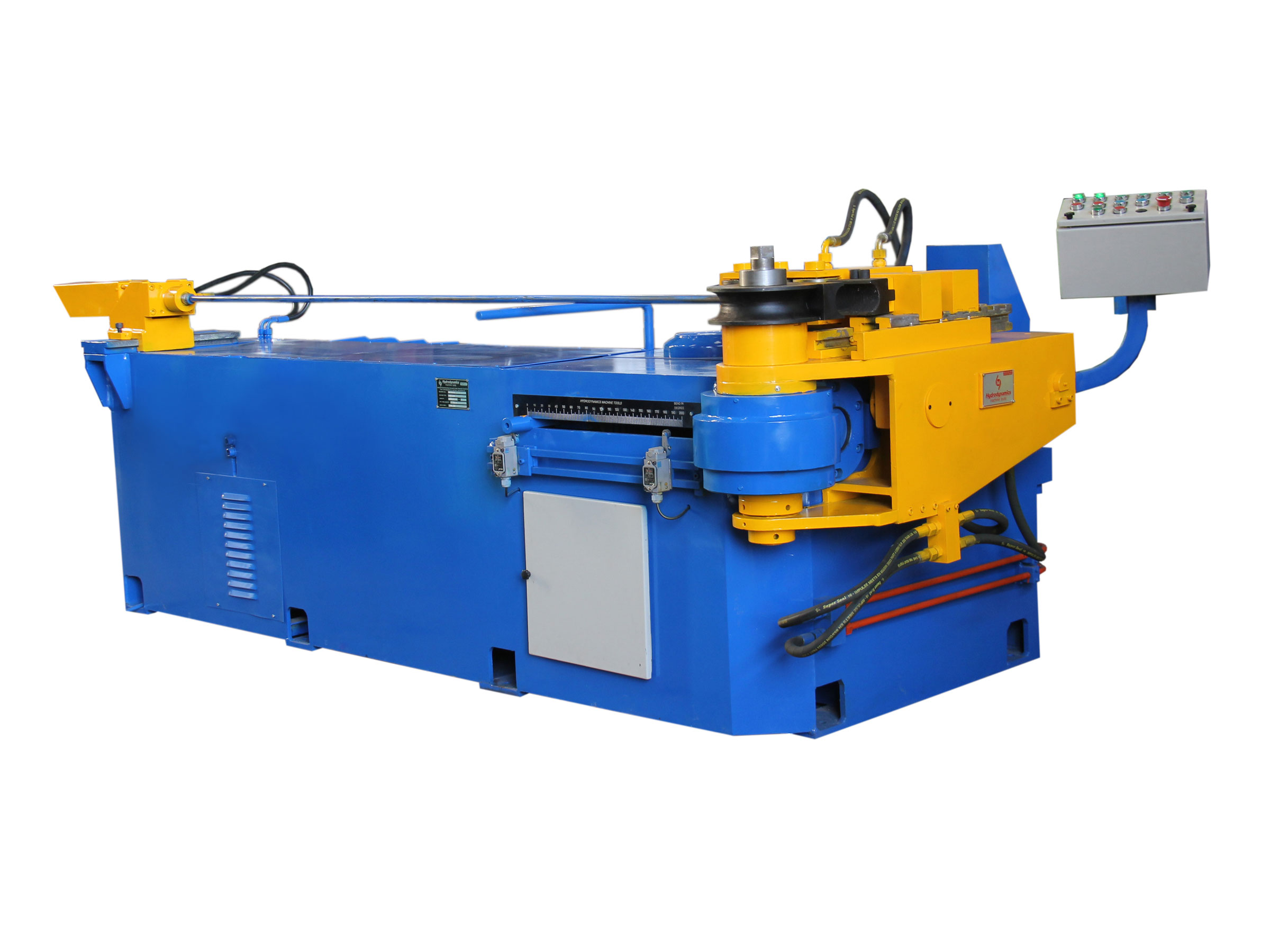

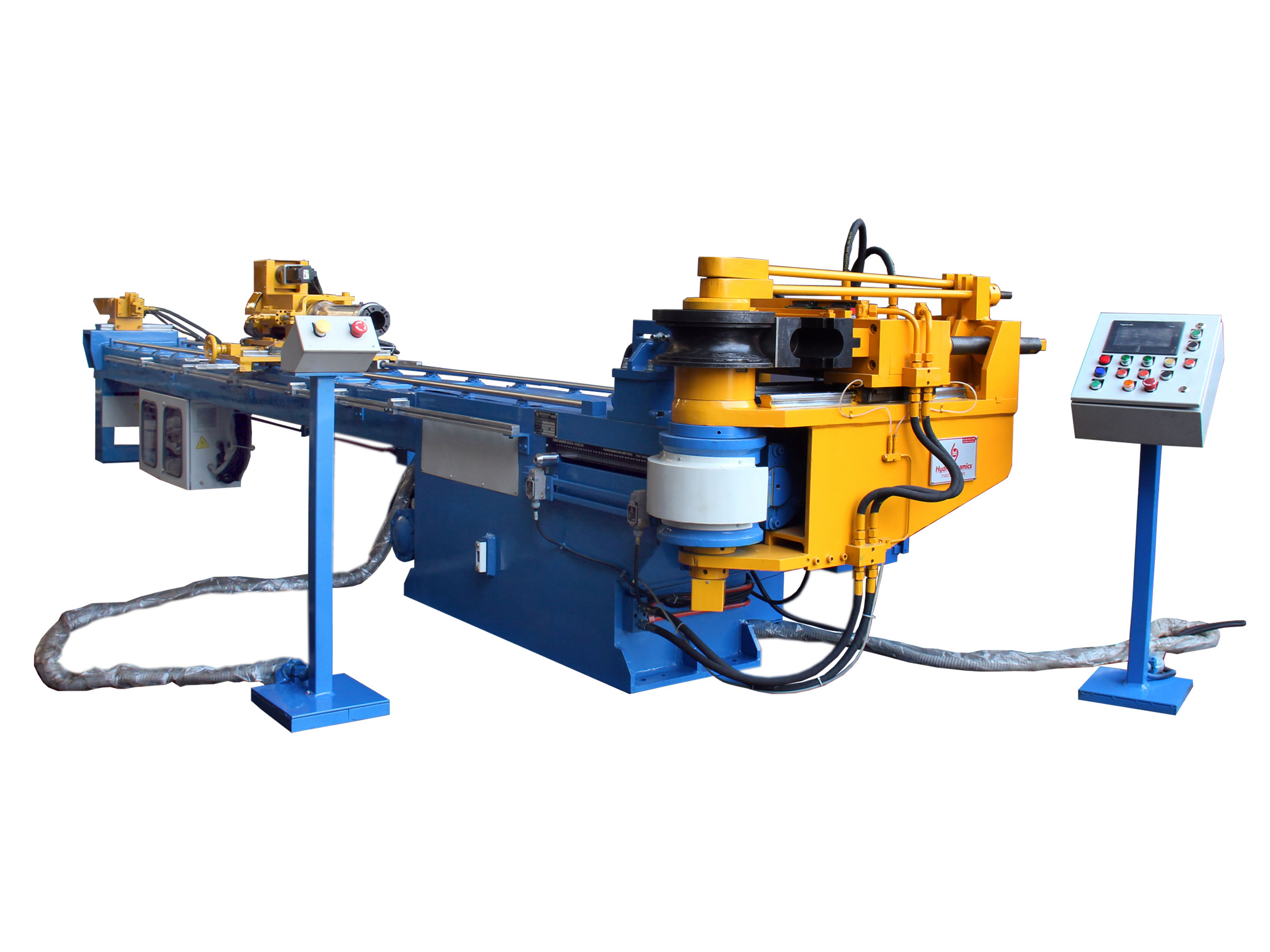

| Model No. | CNC 2A-101 | CNC 2A-90 | CNC 2A-80 | CNC 2A-70 | CNC 2A-50 | CNC 2A-38 | |
|---|---|---|---|---|---|---|---|
| Axis | 1-3 A | 1-3 A | 1-3 A | 1-3 A | 1-3 A | 1-3 A | |
| Max. Tube O.D. Bending Capacity (mm) | Ø100 | Ø90 | Ø80 | Ø70 | Ø50 | Ø38 | |
| Max. Tube Wall Thickness (mm) | 4 | 3 | 3 | 3 | 2.5 | 2 | |
| Max.CLR (mm) | 250 | 250 | 250 | 180 | 180 | 180 | |
| Max. Bending Angle (o) | 180 | 180 | 180 | 180 | 180 | 180 | |
| Max. Mandrel Working Distance (mm) (Extra mandrel length as per customer requirement) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | |
| Processing Speed | Tube Feeding Speed (mm/sec) | Manual Push | Manual Push | Manual Push | Manual Push | Manual Push | Manual Push |
| Tube Rotation Speed (o/sec) | 348 | 759 | 180 | 1371 | 390 | 780 | |
| Tube Bending Speed (o/sec) | 32.1 | 80 | 62.5 | 156.8 | 120 | 283 | |
| Repeatability | Tube Rotation Precision (o) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Tube Bending Precision (o) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | |
| Total Power (kw) | 114.45 | 65 | 48.05 | 68.5 | 63.49 | 51.06 | |
| Operation Height (mm) | 1289 | 1275 | 1170 | 1170 | 1145 | 1200 | |
| Machine Length (mm) | 8094 | 6114 | 6807 | 5570 | 5269 | 4432 | |
| Machine Width (mm) | 2132 | 1977 | 1804 | 1637 | 1676 | 1324 | |
| Machine Height (mm) | 2071 | 1925 | 1900 | 1914 | 1914 | 1630 | |
