Pipe Swaging Machine
Specification
| Model | Heavy Duty Pole Swaging Machine Double Stage Automatic | Main Cylinder Bore |
|---|---|---|
| Swaging Force (Max) | 100 Ton | 60 Ton |
| Clamping Force (Max) | 125 Ton | 80 Ton |
| Swaging Length | 400 mm | 150 mm |
| Clamping Speed (Forward) | 5 mm/sec | 5 mm/sec |
| Clamping Speed (Reverse) | 50 mm/sec | 50 mm/sec |
| Job Loading & Unloading | Manual | Manual |
| Total Cycle Time | 60-70 sec | 40-45 sec |
| Swaging Capacity | Dia 38 to 76 mm | Dia 25 to 76 mm |
| Pipe wall thickness dimensional control | 4 to 6 mm O.D | 3mm |
| Process | Cold Forming | Cold Forming |
| Electric Motor | 15 HP x 1440 rpm | 10 HP x 1440 rpm |

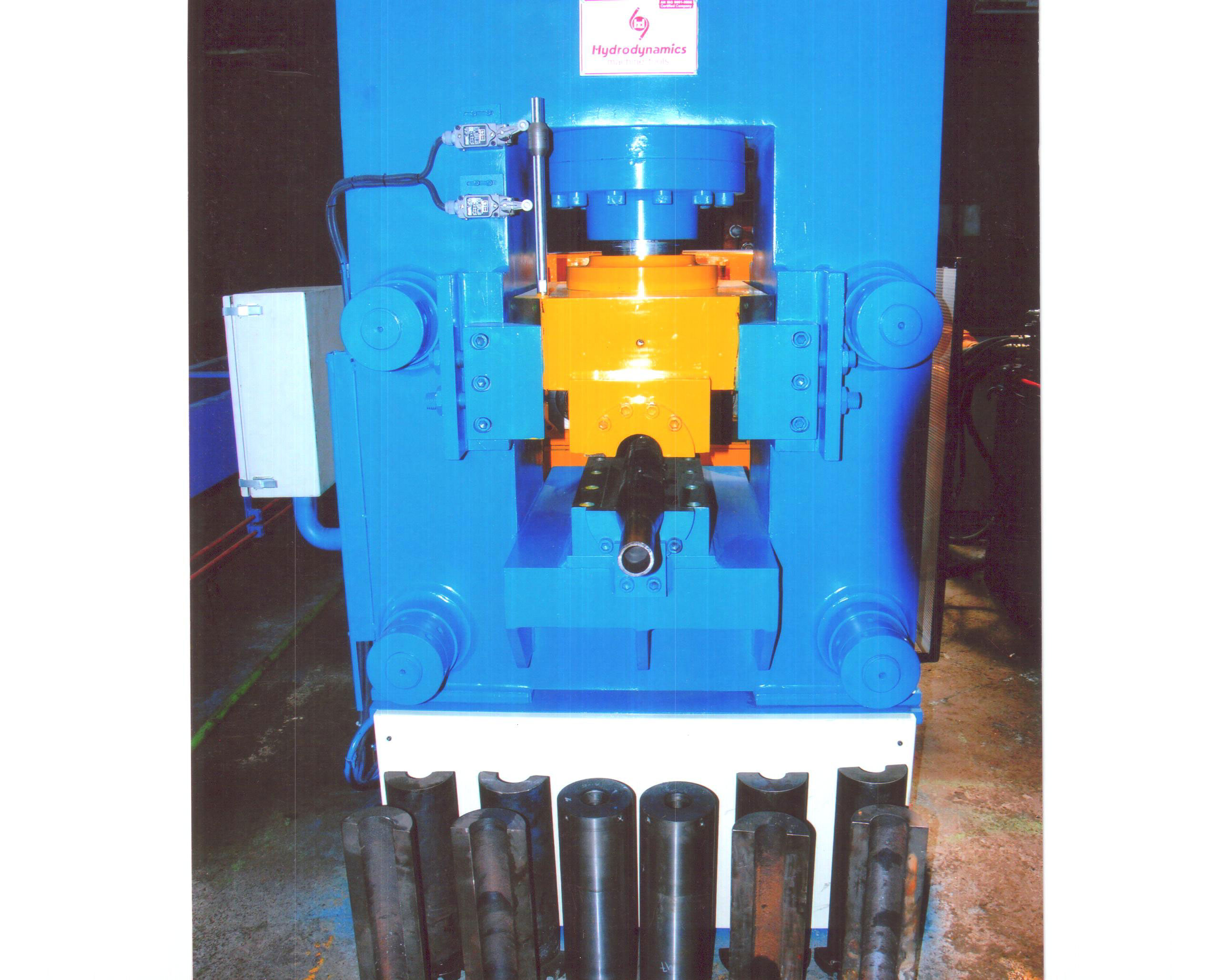

HEAVEY DUTY SWAGING MACHINE

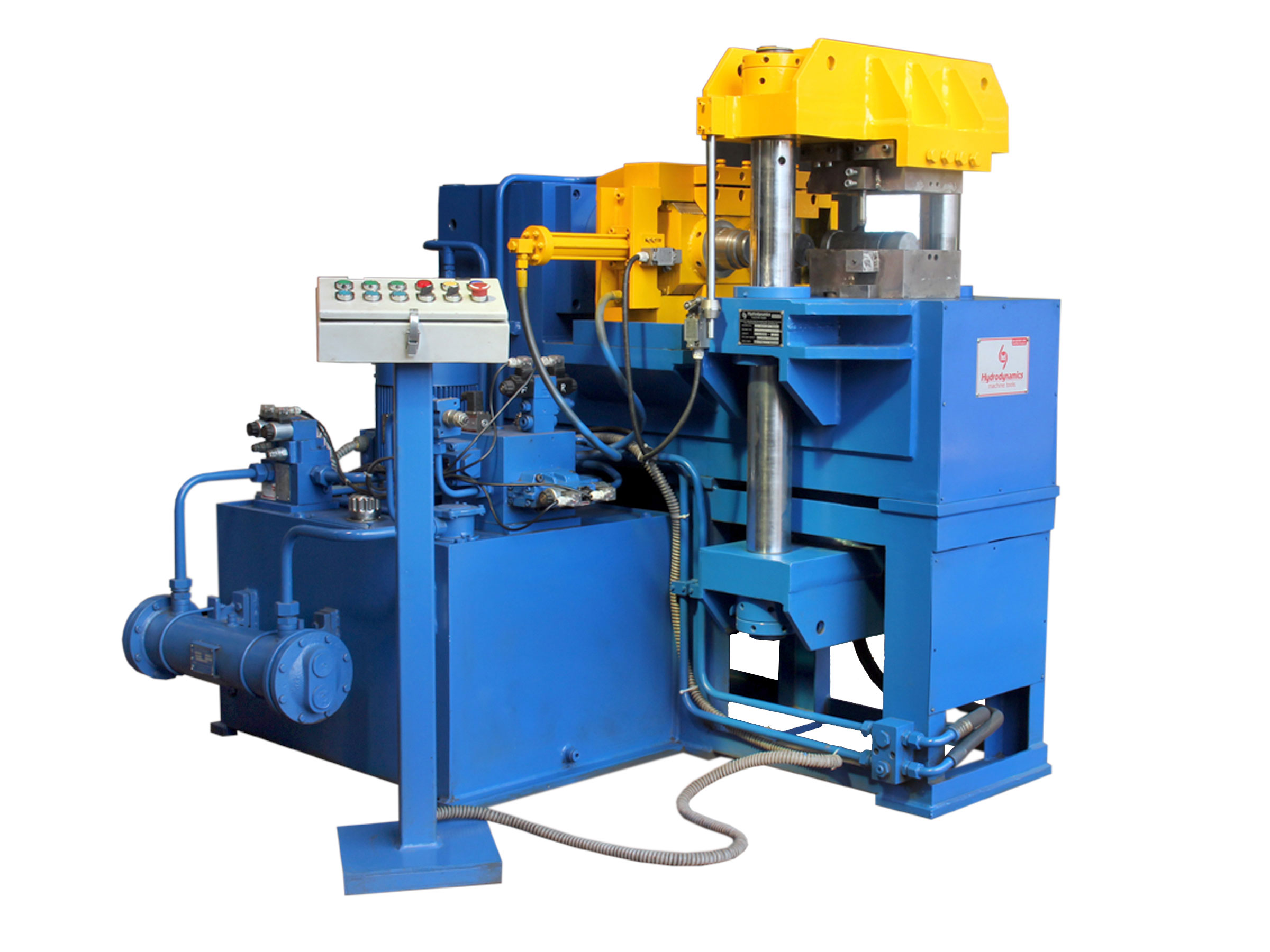

LIGHT DUTY SWAGING MACHINE
