Pole Straightening Machine
Over head 4-pillar fabricated structure guided with horizontal & vertical roller which guides. On bed frame & moves along full length of pole. Main hydraulic cylinder mounted on 4-pillar structure operated by manual Operated lever direction control valve & two pneumatic floating cylinders which holds the taper Pole, main cylinder carrying straightening tool while operated presses the pole & pole rested on bottom movable anvil thus the pole get straightened which straightness can be checked by manually.
Specification
| Model | Light Duty Straightening Machine | Heavy Duty Straightening Machine |
|---|---|---|
| Straightening Size Capacity | 150mm to 650mm OD x 5thk x 8000mm | 150mm to 650mm OD x 5thk x 8000mm |
| Max. Main Cylinder Straightening Capacity | 30 Ton | 50 Ton |
| Ram Stroke | 600 mm | 700 mm |
| Downward Pressing Speed | 3-5 mm/sec | 20 mm/sec |
| Return Speed | 80 mm/sec | 80 mm/sec |
| No. of Straightening Trolley Gantry | 01 | 01 |
| Working Height | 1200 mm | 1200 mm |
| Pneumatic Support Cylinder Capacity | 0.750 Ton x 2 NOs | 1.2 Ton x 2 NOs |
| Pneumatic Support Cylinder Stroke | 75 mm | 75 mm |
| Power Pack Oil Tank Capacity | 200 LTRs | 200 LTRs |
| Power Pack Motor Capacity | 10 HP | 10 HP |
| Pneumatic Pressure | 5 Bar (min) | 5 Bar (min) |
| Movement of Gantry | By means of geared motor | By means of geared motor |

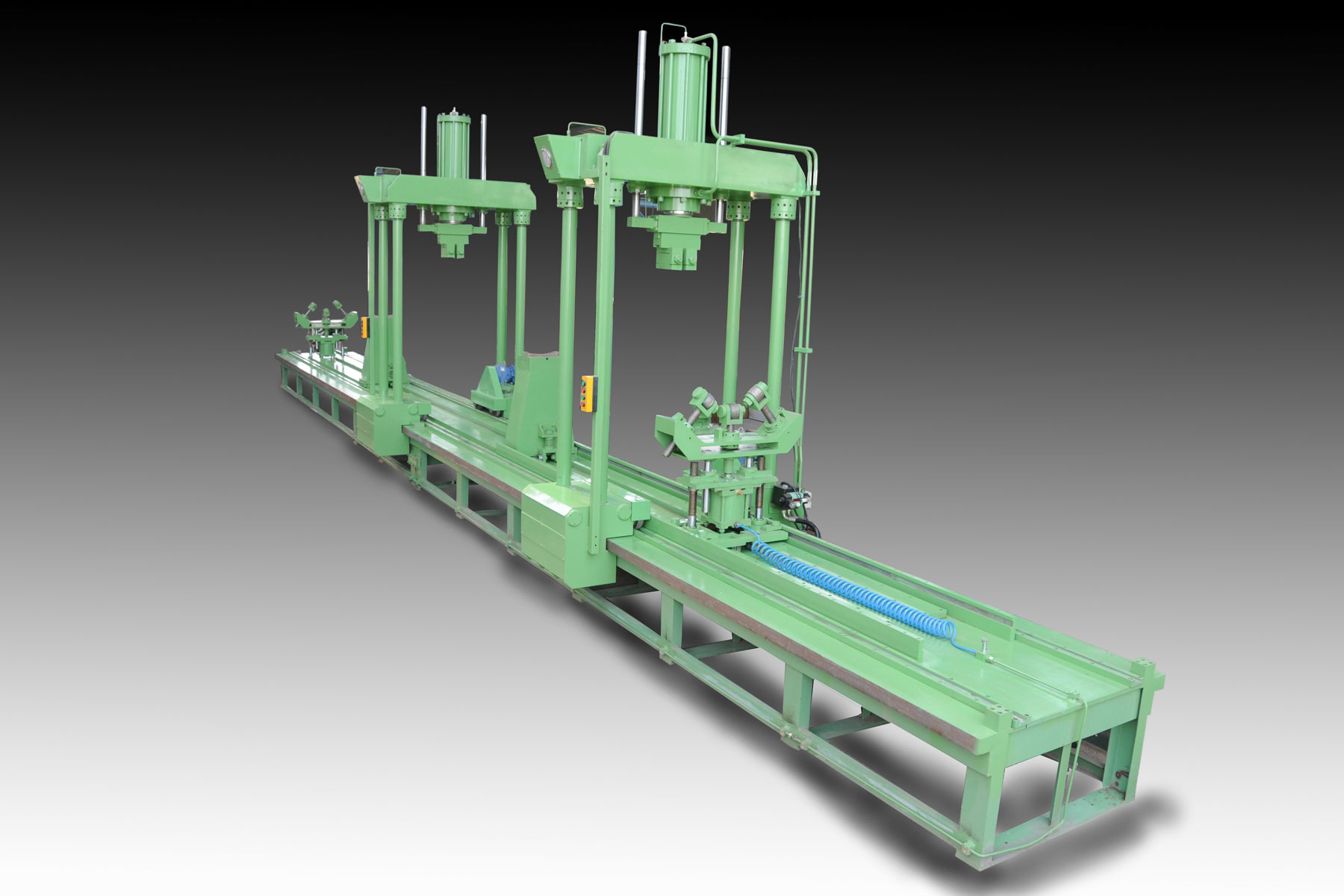

Heavy Duty STRIAGHTNING MACHINE

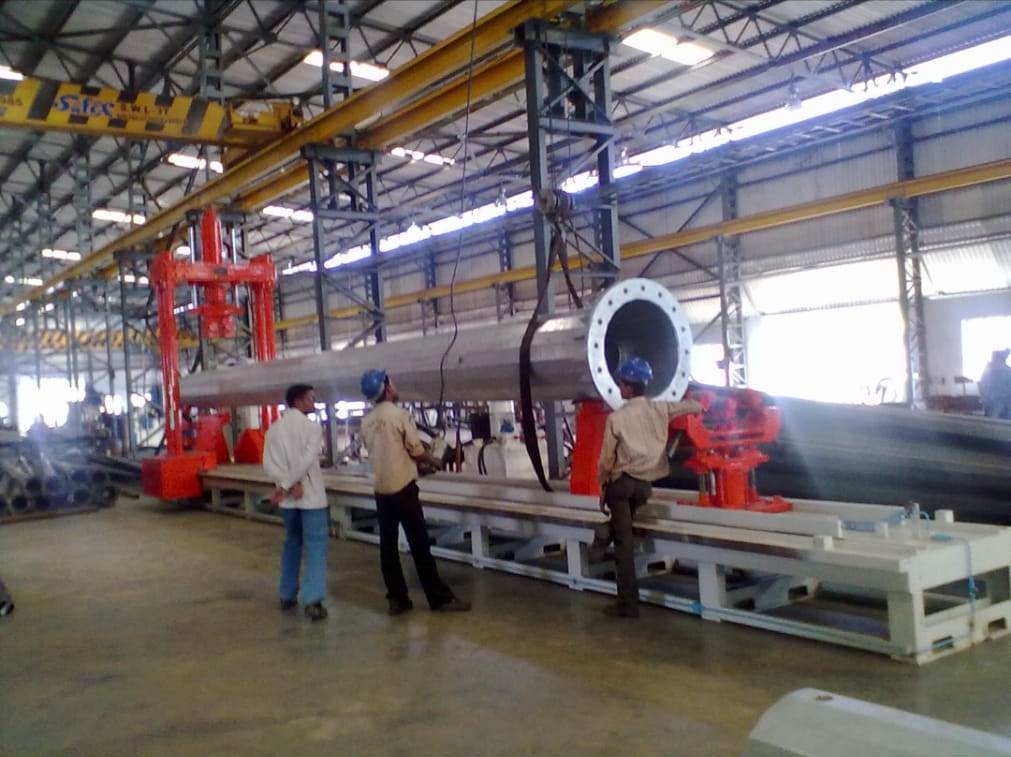

Heavy Duty STRIAGHTNING MACHINE

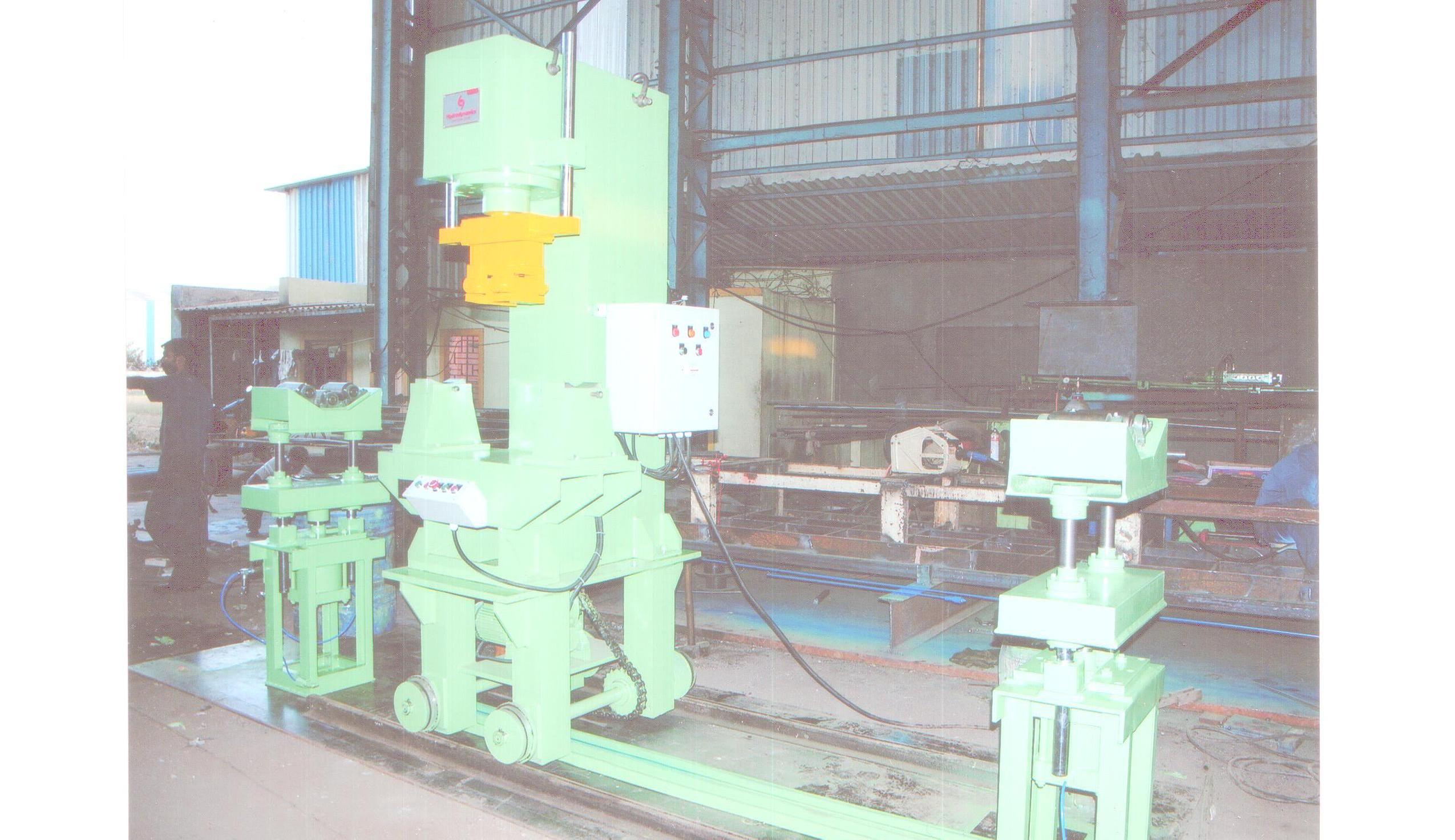

LIght Duty STRIAGHTNING MACHINE
