| Model |

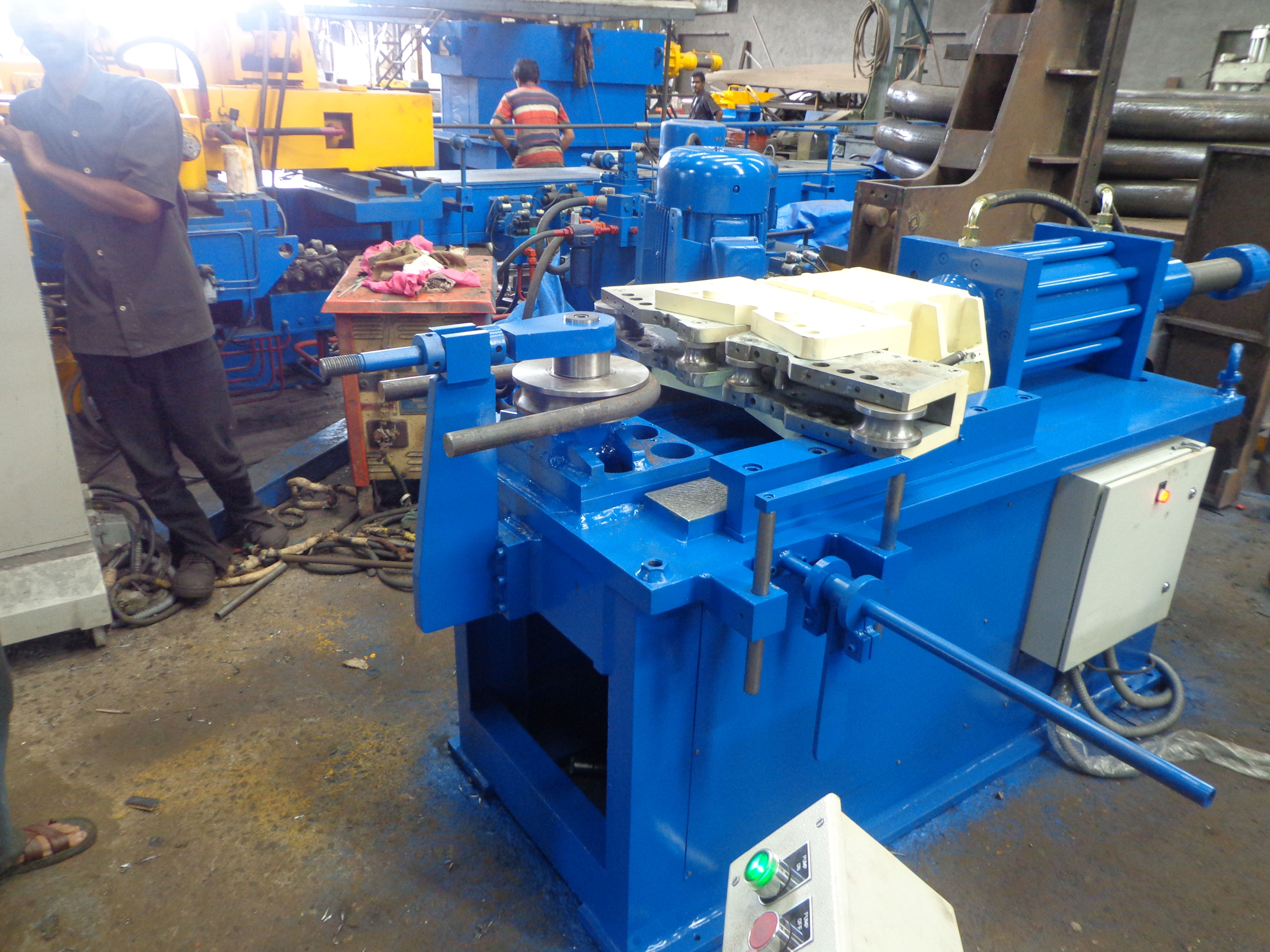

U Type Hot/Cold Solid Round Bar Bending Machine |
| Capacity |
Maximum 32 OD Rod having UTS 45/50 kg/cm3 for Hot Rods only |
| Max Bending Tonnage |
20 Tons |
| Bending Operation |
By Means of Bending Die Actuated by Hydraulic Cylinder with Suitable Tooling’s with rotary actuators. |
| Speed |
Fast Forward |
-50 Mm/Sec |
| Pressing |
-10 Mm/Sec |
| Return |
-50 Mm/Sec |
| Electrical Motor |
10HP |
| Cycle Time |
10-15 Sec Max |
| Hydraulic Tank Capacity |
200 Ltrs |
| Machine Overall Dimensions |
1500 x 1400 x700 (Length x Height x Width) |
| Controls |
Electrical Contactor Logic |
| Machine Paints |
Apple Green |
