CNC (Full Auto-3 Axis) Tube Bender: PLC-Base Control
We offer fully automatic pipe bender CNC-controlled machining of pipes with a diameter from 4mm to 100mm. These models 1,2,3 axis (hybrid models with electrical control in conjunction with the plumbing) and all-electric models in the 1-3 axis...
Standard machine design features on CNC benders include:
Air conditioned electrical enclosure to maintain temperature and prolong system components
Electrical power filtering to stabilize incoming power supplies for an efficient consistent operation
Control electrical cabinet isolation to minimize vibration transfer to electronics
Oil filtering system with condition indicator to protect oil supply
Radiator type oil cooler standard on most models, available on others to maintain oil temperature
Vibration control machine mounting pads to reduce machine movement during operation
Spacious well labeled / layout of electrical system for ease of maintenance and efficient operation
Remote control console for placement in operational location based on application to reduce operator interface time to increase production
Foot pedal cycle start operation for quick safe loading increasing production
Safety mat and safety plates with multiple emergency stop placement for operational safety
Integrated gearbox reducer with multi layer drive chain assembly for smooth controlled operational start / stop movement of bend arm extending the chain life many years beyond traditional hydraulic benders.
Low profile bend head design uniquely offset from center of machine frame providing clearance for complicated parts that can not be obtained on other brands of equipment.
Full capacity feed through collect for working with long material that requires additional length beyond the front collect stop system reducing the need for extended models in most applications.
Low decibel level production noise to reduce operator fatigue and general improvement of shop conditions
Low working heights for ease of operation increasing production and improved safety of material handling
Multiple axis operation reducing cycle time and interference for optimum production
All Electric Tube Bender
The line of CNC electric benders combines the energy savings and quite operation of electric servo control with advanced design features and software to provide the package customers are looking for. The software features the teaching mode programming operation with precise positioning of all movements. The range of the product line from 2” to 6” stainless steel makes these machines a favorite for the truck and automotive exhaust bending industry.
Specification

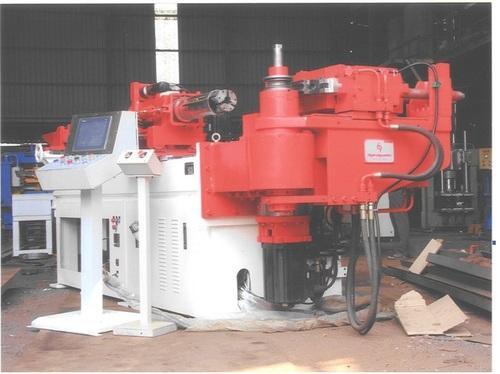

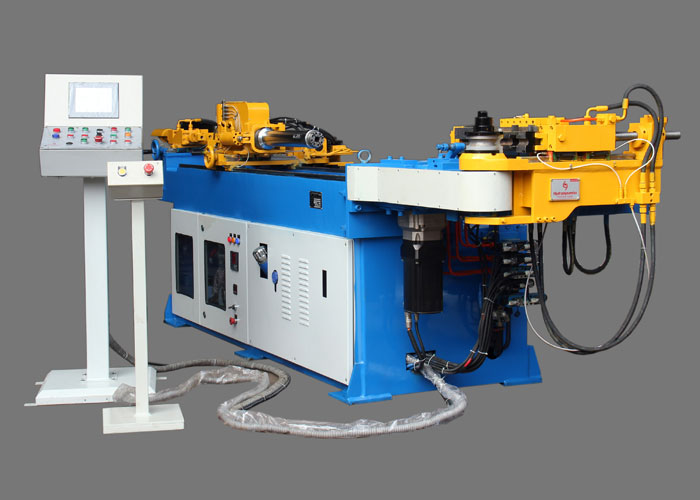

| Model No. | CNC101-3A MS-AE | CNC90-3A MS-AE | CNC80-3A MS-AE | CNC70- 3A MS-AE | CNC50-3A MS-AE | CNC38-3A MS-AE | |
|---|---|---|---|---|---|---|---|
| Axis | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | |
| Max. Tube O.D. Bending Capacity (mm) | Ø100 | Ø90 | Ø80 | Ø70 | Ø50 | Ø38 | |
| Max. Tube Wall Thickness (mm) | 4 | 3 | 3 | 3 | 2.5 | 2 | |
| Max.CLR (mm) | 250 | 250 | 250 | 180 | 180 | 180 | |
| Max. Bending Angle (o) | 180 | 180 | 180 | 180 | 180 | 180 | |
| Max. Mandrel Working Distance (mm) (Extra mandrel length as per customer requirement) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | |
| Processing Speed | Tube Feeding Speed (mm/sec) | 653 | 1143 | 754 | 1143 | 839 | 1693 |
| Tube Rotation Speed (o/sec) | 348 | 759 | 180 | 1371 | 390 | 780 | |
| Tube Bending Speed (o/sec) | 32.1 | 80 | 62.5 | 156.8 | 120 | 283 | |
| Repeatability | Tube Feeding Precision (mm) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Tube Rotation Precision (o) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | |
| Tube Bending Precision (o) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | |
| Total Power (kw) | 114.45 | 65 | 48.05 | 68.5 | 63.49 | 51.06 | |
| Operation Height (mm) | 1289 | 1275 | 1170 | 1170 | 1145 | 1200 | |
| Machine Length (mm) | 8094 | 6114 | 6807 | 5570 | 5269 | 4432 | |
| Machine Width (mm) | 2132 | 1977 | 1804 | 1637 | 1676 | 1324 | |
| Machine Height (mm) | 2071 | 1925 | 1900 | 1914 | 1914 | 1630 | |
